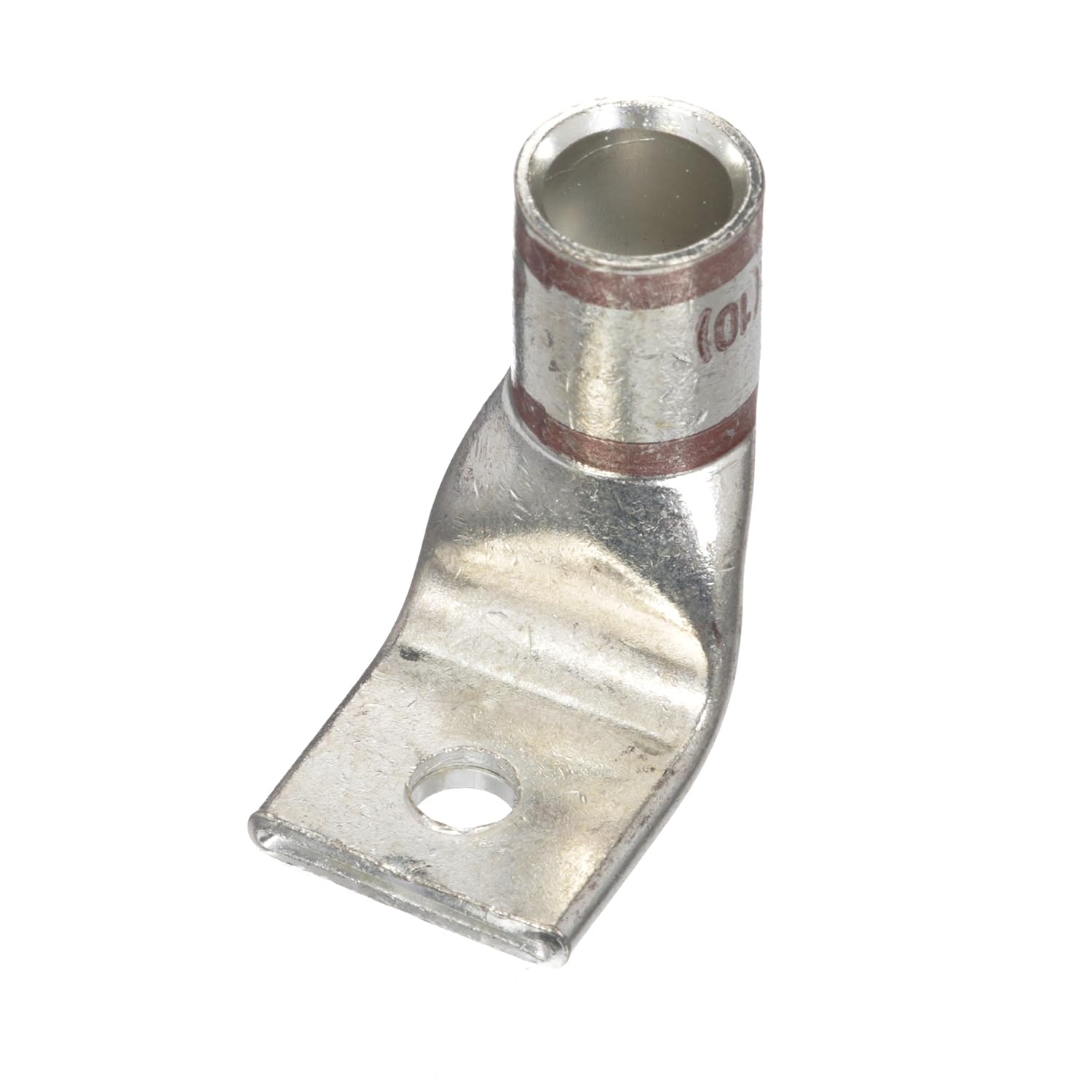

Panduit LCAX450-12F-6 Flex Conductor Lug, One Hole, Standard Barrel With Window, 90 Degree Angle, 444.4kcmil Diesel Locomotive Size, 450kcmil Class G/H/I/K/M Conductor Size, 1/2" Stud Hole Size, Brown Color Code, 1-7/16" Wire Strip Length, 0.26" Tongue Thickness, 1.70" Tongue Width, 1.40" Neck Length, 2.95" Overall Length

Panduit Pan-Lug Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only per compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment. Functional product information is marked directly on the connector, facilitating the identification, ordering, and usage of the compression connector. Color-coded to facilitate quick identification of the proper crimping die. Made from high strength, high conductivity electrolytic copper and aluminum alloy materials to provide optimum connectivity for power and grounding applications. UL Listed or Recognized, CSA Certified, ABS Type Approved and tested by Telcordia - meets NEBS Level 3, as noted. Terminations using Panduit Pan-Lug™ Compression Connectors are also UL Listed and CSA Certified with specified competitor tools. Wide assortment of manual, controlled cycle, battery operated hydraulic and pneumatic crimping tools for reliable connections at the lowest installed cost. Panduit Pan-Lug™ Compression Connectors are designed for use with many different code and flex conductor types and are available in a broad range of styles and sizes including copper one-hole, two-hole, and blank tongue lugs and splices; aluminum one-hole and two-hole lugs and splices; and copper in-line reducing splices. Panduit offers a wide assortment of Pan-Lug™ Power Connectors to meet customer needs and today’s application requirements.

• Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
• Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
• Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
• Inspection window to visually assure full conductor insertion
• Tin-plated to inhibit corrosion
