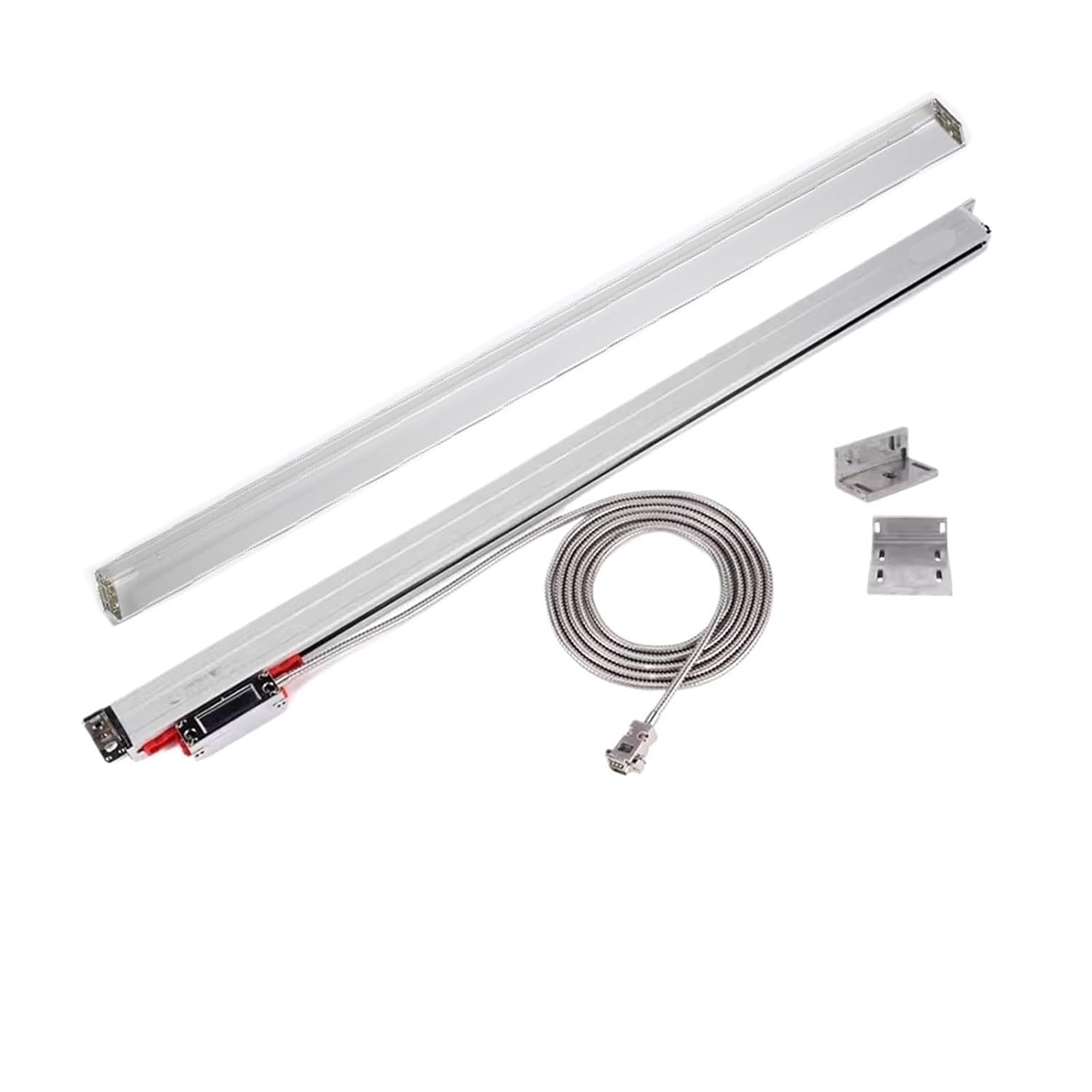

Lathe Metal SDS6-2V 2 Axis Digital Readout DRO Display and Linear Scale KA600-2000+KA500-370 420MM 0.005mm Slim Optical Encoder

Lathe Metal SDS6-2V 2 Axis Digital Readout DRO Display and Linear Scale KA600-2000+KA500-370 / 420MM 0.005mm Slim Optical EncoderPackage include:Option"DRO-2000-slim 370mm", include SDS6-2V DRO X 1pc, KA600-2000mm linear scale x 1pc, KA500-370mm scale x 1pc, with accessories;Option"DRO-2000-slim 420mm", include SDS6-2V DRO X 1pc, KA600-2000mm linear scale x 1pc, KA500-420mm scale x 1pc, with accessories;Important:Digital readout description:1.Resolution switch function2.Bolt hole patterns, centerline calculation3.Preset set and zero reset , tool error compensation4.Absolute / Incremental , Inch / Metric5.Message Prompts, Memory back-up6.Power down c/w Interrupt memory7.Console sleep mode8.Linear compensation/compensate linear reading error9.Metric & display10Absolute Incremental coordinates11Linear segmented compensation program to match scales to console13Advanced calculator including trigonometric functions14200 position zero memory15200 Tool zero offset positions16.Milling Specific:PCD Rough Arc milling, Inner pocket milling, Center finding,Radius finding, Oblique line of holes, Angular processing17.Lathe Specific:Radius/Diameter function,Taper angle calculation,X+Z sumMetalSDS6-2V Dro digital readout display system Parameter:1.Voltage Range: AC 80V~250V/50HZ~60HZ2.Acceptable Signal: TTL3. Plugg: DB94.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um.KA300 Linear scals/Linear encoderParameters:1. Travel (measuring) length: 0-1020mm2. Plugg: DB93. Resolution: 0.005mm(5um)4. Input voltage: 5VDC5. Grating pitch: 0.02mm (50LP/min)6. Cable length: 3 Meter7. Size:21*34mm8.KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure, the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use longDegree in 70~1020mm.9. Moving speed: high speed ruler 120 m/min(customiz),Ordinary ruler 60m/min.10. Power supply: +5V + 5%, 80mA.11. Working temperature: 0~45The Signal of KA300Linear optical ruler/Linear glass scales/Linear encoder/Linear sensorPin 2 Black 0VPin 4 Shielded wirePin 6 Green APin 7 Red 5VPin 8 Orange BPin 9 White ZKA500 Slim linear scale parameter:Model: KA500 seriesAdvantage: Slim scale suits for small spaces machinesProduct name: Linear scaleTravel/working length: 370 or 420mm , or other working length, please contact seller.Resolution: 0.005mmOuput signal: TTL (EIA-422-A with extra cost)Input voltage:5VDCCale length: 3 metersBatteries Included : NoModel Number : SDS6-2V / K600 / KA500Origin : Mainland China

• DUOCARA Lathe Metal SDS6-2V 2 Axis Digital Readout DRO Display and Linear Scale KA600-2000+KA500-370 420MM 0.005mm Slim Optical Encoder
