4X2 HDMI Matrix 4K 60Hz HDMI 2.0 Matrix Switcher 4x2 with Audio Extractor HDR HDMI Switch Splitter for PC PS5 HDTV HDCP2.2

The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber and stereo headphone output at the same time via HDMI out 1 port . The matrix allows four HDMI devices to be switched or split easily to two HDMI-compatible monitors or projectors. Our devices offer solutions for noise, space and security concerns, data center control, information distribution,conference room presentation, school and corporate training environments. Features : * Support 3D video format; * Via HDMI out1, support 3.5mm earphone jack and optical output at same time; * 4 HDMI inputs switch and split to 2 HDMI displays; * Support LPCM/Dolby/DTS 5.1 channel; SPECIFICATIONS : HDMI resolution ：up to 3840*2160/60Hz Support video format ：8/10/12 bit deep color Support audio format ：LPCM/DTS/Dolby-AC3 Max bandwidth ：600MHz Max baud rate ：3x6Gbps Input cable distance ： 4K/30Hz ≤15M AWG26 HDMI standard cable 4K/60Hz ≤5M HDMI 2.0 standard cable Output cable distance：4K/30Hz ≤15M AWG26 HDMI standard cable 4K/60Hz ≤5M HDMI 2.0 standard cable Max working current ： 900mA Power adapter format ：Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1.5A Operating Temperature range ：(-15 to +45℃) Operating Humidity range：5 to 90%RH (No Condensation) Dimension (L x W x H) ：122x80x19 (mm) Weight ： 180g

• A: 4K HDMI Matrix 4X2: four inputs, two outputs,: HDMI2.0, two in two out, 4K@60HZ, enjoy 3D, switch/distribution (four switch, two distribution), audio separation (stereo/optical audio output). four-way input, two-way output, the four-way signal input can be switched freely, the signal output can be selected arbitrarily, and the same screen can be displayed or different signal screens can be selected.
• B: Four major technologies escort: anti-static technology to prevent electronic components from being damaged by static electricity. Anti-surge technology enhances product stability and prevents surge impact. 4K*2K/6OHz, enjoy high-definition vision and experience the delicate world. 3D imaging technology, 3D large-screen viewing, and enjoy stereoscopic visual effects.

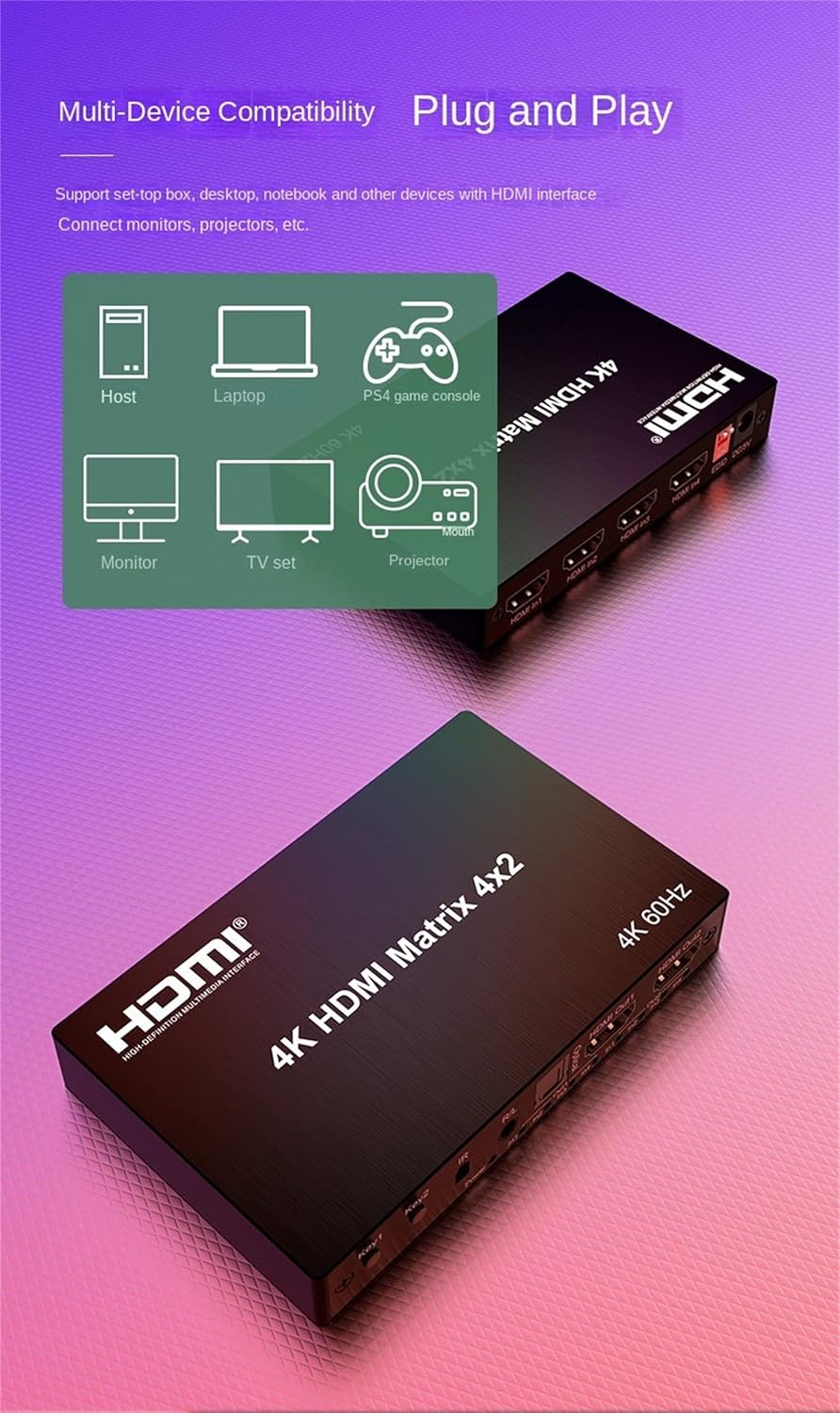

• C: Multi-device compatibility, plug-and-play: support set-top boxes, desktops, notebooks and other devices with HDMI interfaces to connect to monitors, projectors, etc. Multi-system compatibility, compatible with Windows series, Mac 0S, Linux and other systems, no need to install drivers, plug and play.
• D: Button/Remote control: Double selection, you can switch by remote control or switch by manual button, any screen is under your control.
• E: Audio separation, synchronous output: external audio/headphone, optical fiber, 3.5mm dual audio interface (- optical fiber + a 3.5mm interface).
