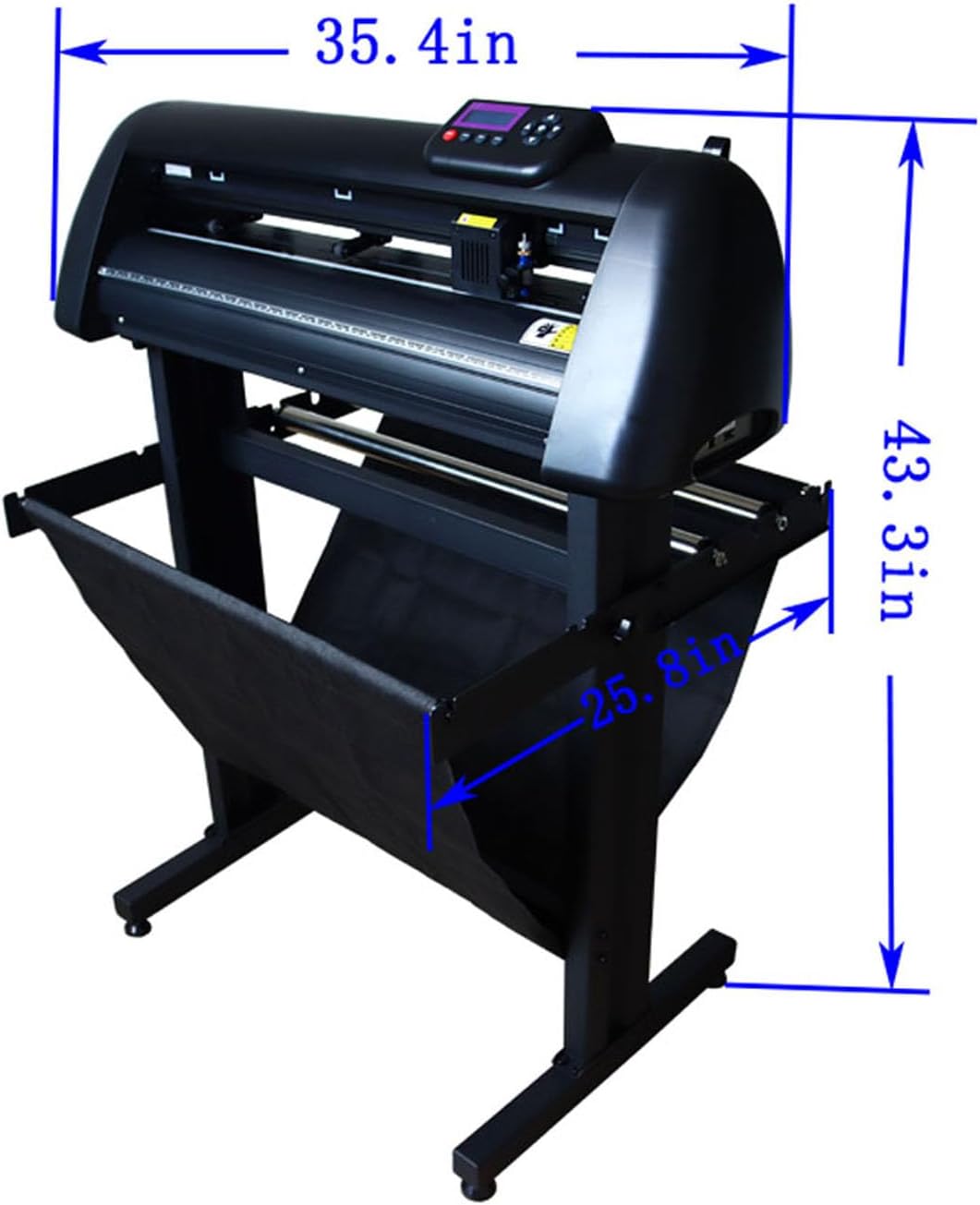

24inch Vinyl Cutter Automatic Edge Patrol 500g Cutting Machine DIY Vinyl Printer Plotter with LCD Display and COM, USB, U Disk Interface

Parameters Model Item GC-721ABJ Max. Paper Width 720mm Max. Plotting Width 630mm Main board Stepping ARMS main board Max.cutting speed 5-800mm/s Max.Cutting Force 5-500g Roller Steel-string roller Interface COM+USB+U Disk Display Yes Work voltage AC85V~AC264V Command set DMPL/HPGL Colors BlackAnycut Software 1.We supply technique support after your purchasing. And we provide a detaileduser manual with words, pictures and video made by ourselves, after yourordering, we will send it out with the cutter machine 2.It can extract contours with one key, automatically generate marker points, and can also do segment cutting for long images 3.You can import pictures in JPG, TIFF, PDF, AI and other formats, and the software can extract them with one click, no need to make vector graphics 　 Item Number: 004004

• 【Automatic Edge Patrol】24inch 500g cutter plotter equipped with professional integrated circuits, high precision, high speed, using engraving language, supporting various software on the market. Steel shaft and steel spike, integrated pressure roller, ensure the machine's paper feeding accuracy is above 7 meters without deviation, and the edge inspection is 20 meters without deviation. Supports automatic contour cutting and offline cutting functions.

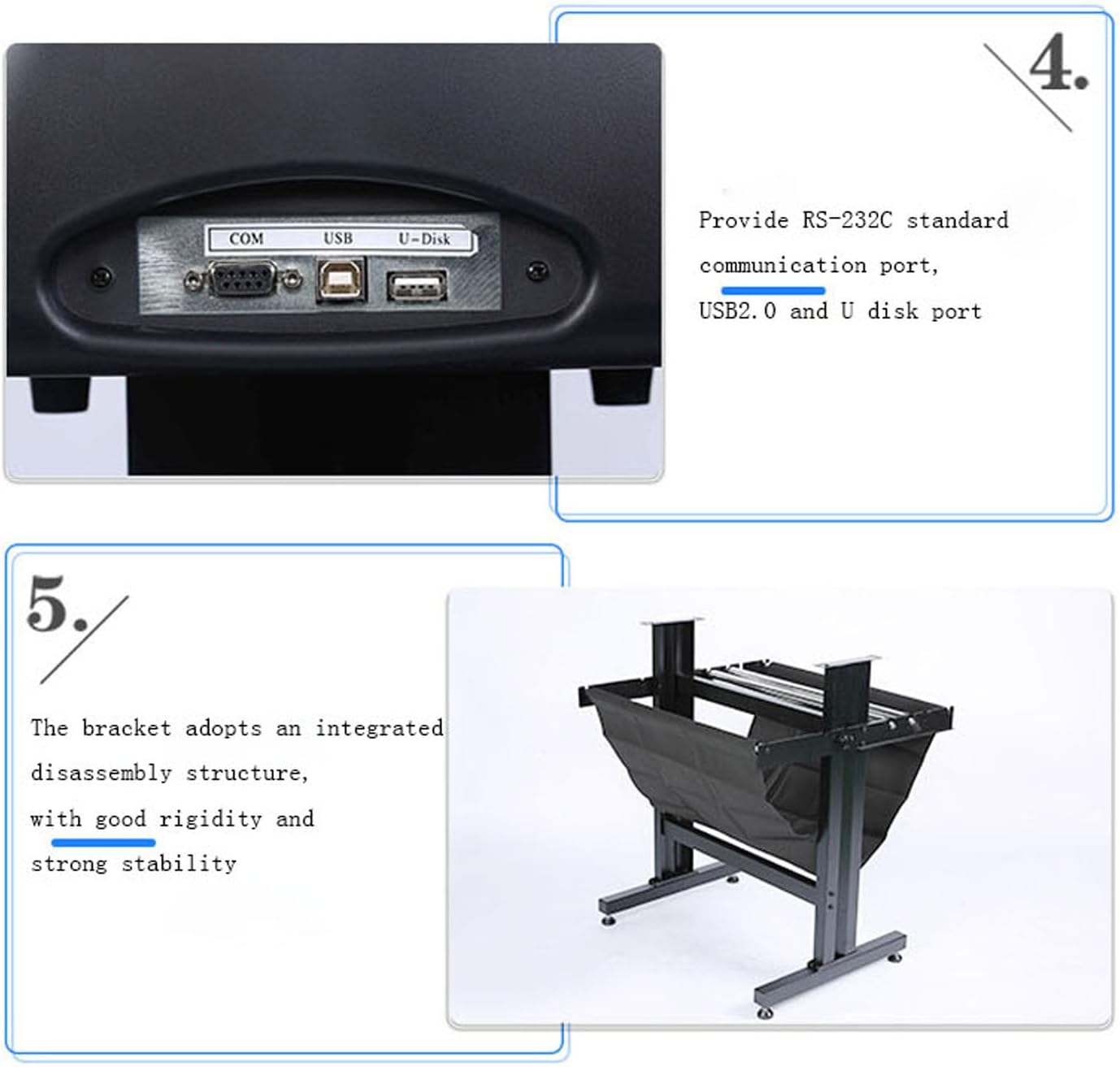

• 【Strong Compatibility】 - Connect the plotter cutter through RS-232C standard communication port, hot swappable USB 2.0, and USB port. Based on PC or compatible computer Windows XP, Windows Vista, Windows 7/8/10, MAC.
• 【High Precision】- GC fully automatic aluminum casting car, dual bearing linear cutter holder, higher carving accuracy. The frame adopts an integrated disassembly and assembly structure, which has better rigidity and stronger stability. High speed servo motor, low noise.
• 【Stable Support】- The rack adopts an integrated disassembly structure, which has better rigidity and stronger stability, and is highly efficient when used in conjunction with the machine; Double axis paper holder, making daily use more convenient. High speed servo motor, low noise, steel wire drum, linear bearing trolley, making carving accuracy higher.
• 【Widely Application】- The Max. Paper Width is 720mm and the Max. Plotting Width is 630mm. Vinyl cutting machines can be used to cut indicator lights, billboards, window decorations, automotive films, and thermal conductive engraving films. Suitable for the advertising industry, automotive beauty industry, fashion design industry, etc.
